Connection cables

V.24 for HSCB/ESB
V.35 for HSCB/ESB
X21 for HSCB/ESB
MAN/V11 per HSCB
Asynchronous DB25
Asynchronous DB9
Cable to connect ISDN S₀ "data only" adapter to Telco T₀ NT
Cable to connect ISDN S₀ EBIB to Telco T₀ NT
Cable to connect ISDN T₀ EBIB to PABX S₀ TE
Cable to connect ISDN S_2m EPIB to Telco NT termination.
Cable to connect ISDN T_2m EPIB to PABX TE S_2m.
Analogue voice FXS ed FXO
Ethernet 10BaseT e 100BaseTX
RJ-45 and RJ-11 pinout

**Table 1.** V.24 cables for HSCB/ESB.
V24 DTE (00124)						V24 DCE(00224)
Cable end plugged into CPX socket DB15 male			DB25 male			Cable end plugged into CPX socket DB15 male			DB25 female
1	(shield)	--------	1	(shield)		1	(shield)	--------	1	(shield)
2	TXD	-->----	2	TXD		2	TXD	-->----	3	RXD
3	RXD	----<--	3	RXD		3	RXD	----<--	2	TXD
4	RTS	-->----	4	RTS		4	RTS	-->----	5	CTS
5	CTS	----<--	5	CTS		5	CTS	----<--	4	RTS
6	DSR	----<--	6	DSR		6 + 8	DSR DCD	---<---	20	DTR
7	SG	--------	7	SG		6 + 8	DSR DCD	---<---	20	DTR
8	DCD	----<--	8	DCD		7	SG	--------	7	SG
9	TXC	----<--	15	TXC		11	DTE Clk	-->----	15 + 17	TXC RXC
10	RXC	----<--	17	RXC		11	DTE Clk	-->----	15 + 17	TXC RXC
12	DTR	-->----	20	DTR		12	DTR	-->----	6 + 8	DSR DCD
13	RI	----<--	22	RI		12	DTR	-->----	6 + 8	DSR DCD
11	DTE Clk	----<--	24	DTE Clk

**Table 2.** V.35 cables for HSCB/ESB.
V35 DTE(00135)						V35 DCE(00235)
Cable end plugged into CPX socket DB15 male			M male			Cable end plugged into CPX socket DB15 male			M female
1	(shield/SG)	--------	A + B	(shield/SG)		1	(shield/SG)	--------	A + B	(shield/SG)
2	TXD +	-->----	P	TXD +		2	TXD +	-->----	R	RXD +
3	RXD +	----<--	R	RXD +		3	RXD +	----<--	P	TXD +
4	TXC +	----<--	Y	TXC +		6	DTE Clk +	-->----	Y + V	TXC + RXC +
5	RXC +	----<--	V	RXC +		6	DTE Clk +	-->----	Y + V	TXC + RXC +
6	DTE Clk +	-->----	U	DTE Clk +		7	DTR	-->----	E + F	DSR DCD
7	DTR	-->----	H	DTR		7	DTR	-->----	E + F	DSR DCD
8	CTS	----<--	D	CTS		8	CTS	----<--	C	RTS
9	TXD -	-->----	S	TXD -		9	TXD -	-->----	T	RXD -
10	RXD -	----<--	T	RXD -		10	RXD -	----<--	S	TXD -
11	TXC -	----<--	AA	TXC -		13	DTE Clk -	-->----	AA + X	TXC + RXC +
12	RXC -	----<--	X	RXC -		13	DTE Clk -	-->----	AA + X	TXC + RXC +
13	DTE Clk -	-->----	W	DTE Clk -		14	RTS	-->----	D	CTS
14	RTS	-->----	C	RTS		15	DCD	----<--	H	DTR
15	DCD	----<--	E	DCD

**Table 3.** X21 adaptor cables for HSCB/ESB.
X21 DTE(00121)						X21 DCE(00221)
Cable end plugged into CPX socket DB15 male			DB15 male			Cable end plugged into CPX socket DB15 male			DB15 female
1	(shield/SG)	--------	1	(shield/SG)		1	(shield/SG)	--------	1	(shield/SG)
2	TXD +	-->----	2	TXD +		2	TXD +	-->----	4	RXD +
3	C +	-->----	3	C +		3	C +	-->----	5	I +
4	RXD +	----<--	4	RXD +		4	RXD +	----<--	2	TXD +
5	I +	----<--	5	I +		5	I +	----<--	3	C +
6	ST +	----<--	6	ST +		6 + 7	ST + DTE Clk +	-->----	6	ST +
9	TXD -	-->----	9	TXD +		6 + 7	ST + DTE Clk +	-->----	6	ST +
10	C -	-->----	10	C -		9	TXD -	-->----	11	RXD -
11	RXD -	----<--	11	RXD -		10	C -	-->----	12	I -
12	I -	----<--	12	I -		11	RXD -	----<--	9	TXD -
13	ST -	----<--	13	ST -		12	I -	----<--	10	C -
						13+14	ST - DTE Clk -	-->----	13	ST -

**Table 4.** MAN/V11 adaptor cables for HSCB.
MAN V11(---)
Cable end plugged into CPX socket DB15 male			Free wires
1	(shield/SG)	--------
2	TXD +	-->----
4	RXD +	----<--
9	TXD -	-->----
11	RXD -	----<--

**Table 5.** Asynchronous connection cables (DB25).
Asynchronous RS232/V24 CPX-Null-Modem 25-25						Asynchronous RS232/V24 CPX-Modem 25-25
Cable end plugged into CPX socket DB25 female			DB25 female			Cable end plugged into CPX socket DB25 female			DB25 male
Shield	1 sh	----	1 sh	Shield		Shield	1 sh	----	1 sh	Shield
TxD	2	->--	3	RxD		TxD	2	->--	2	TxD
RxD	3	--<-	2	TxD		RxD	3	--<-	3	RxD
RTS	4	->--	5	CTS		RTS	4	->--	4	RTS
CTS	5	--<-	4	RTS		CTS	5	--<-	5	CTS
SG	7	----	7	SG		DSR	6	--<-	6	DSR
DCD	8	--<-	20	DTR		SG	7	----	7	SG
DTR	20	->--	8	DCD		DCD	8	--<-	8	DCD
						DTR	20	->--	20	DTR

**Table 6.** Asynchronous connection cables (DB9).
Asynchronous RS232/V24 Null-Modem 9-25						Asynchronous RS232/V24 Null-Modem 9-9
Cable end plugged into CPX socket DB9 female			DB25 female			Cable end plugged into CPX socket DB9 female			DB9 female
DCD	1	---<--	20	DTR		DCD	1	---<--	4	DTR
RxD	2	---<--	2	TxD		RxD	2	---<--	3	TxD
TxD	3	-->---	3	RxD		TxD	3	-->---	2	RxD
DTR	4	-->---	8	DCD		DTR	4	-->---	1	DCD
SG	5	-------	7	SG		SG	5	-------	5	SG
RTS	7	-->---	5	CTS		RTS	7	-->---	8	CTS
CTS	8	---<--	4	RTS		CTS	8	---<--	7	RTS

**Table 7.** Connection cable between ISDN S₀ "data only" adaptors, and Telecom T₀ NT.
S₀ TE "data only" - T₀ NT
Cable end plugged into CPX (TE) socket RJ45 male			Cable end plugged into NT socket RJ45 male
	1		1	Psink3 +
	2		2	Psink3 -
TXD +	3	-->----	3	RXD +
RXD +	4	----<--	4	TXD +
RXD -	5	----<--	5	TXD -
TXD -	6	-->----	6	RXD -
	7		7	Psource2 -
	8		8	Psource2 +

**Table 8.** Connection cable between ISDN S₀ EBIB adaptors and Telecom T₀ NT (crossed).
S₀ EBIB - T₀ NT
Cable end plugged into CPX (EBIB) socket RJ45 male			Cable end plugged into NT RJ45 male
	1		1	Psink3 +
	2		2	Psink3 -
RXD +	3	----<--	4	TXD +
TXD +	4	-->----	3	RXD +
TXD -	5	-->----	6	RXD -
RXD -	6	----<--	5	TXD -
	7		7	Psource2 -
	8		8	Psource2 +

**Table 9.** Connection cable between ISDN T₀ EBIB adaptors and PABX S₀ TE.
T₀ EBIB - S₀ TE (PABX)
Cable end plugged into CPX (EBIB) socket RJ45 male			Cable end plugged into TE RJ45 female
	1		1
	2		2
RXD+	3	----<--	3	TXD+
TXD+	4	-->----	4	RXD+
TXD-	5	-->----	5	RXD-
RXD-	6	----<--	6	TXD-
	7		7
	8		8

**Table 10.** Connection cable between ISDN S_2m EPIB adaptors and Telecom terminal.
S_2m EPIB - T_2m TelecomTerminal
Cable end plugged into CPX (EBIB) socket RJ45 male			Free wires
	1
	2
RXD+	3	----<--
TXD+	4	-->----
TXD-	5	-->----
RXD-	6	----<--
	7
	8

**Table 11.** Connection cable between ISDN T_2m EPIB adaptors and PABX TE S_2m.
T_2m EPIB - S_2m TE (PABX)
Cable end plugged into CPX (EBIB) socket RJ45 male			Free wires
	1
	2
RXD+	3	----<--
TXD+	4	-->----
TXD-	5	-->----
RXD-	6	----<--
	7
	8

**Table 12.** FXS ed FXO connection cables.
FXS - Telephone						FXO - PABX
Cable end plugged into CPX socket RJ45 male			Cable end plugged into telephone RJ11 male			Cable end plugged into CPX socket RJ45 male			Cable end plugged into PABX socket RJ11 male
	1						1
	2		1				2		1
	3		2				3		2
Tip	4	--------	3	Tip		Tip	4	--------	3	Tip
Ring	5	--------	4	Ring		Ring	5	--------	4	Ring
	6		5				6		5
	7		6				7		6
	8						8

**Table 13.** Connection cable for ethernet 10BaseT and 100BaseTX.
TP CPX - TP HUB
Cable end plugged into CPX socket RJ45 male			Cable end plugged into HUB socket RJ45 male
TXD +	1	-->----	1	RXD +
TXD -	2	-->----	2	RXD -
RXD +	3	----<--	3	TXD +
	4		4
	5		5
RXD -	6	----<--	6	TXD -
	7		7
	8		8

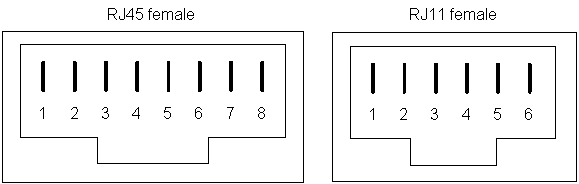

Figure 1. Female connectors RJ-45 ed RJ-11.
Rj45-Rj11 connectors

Rj45-Rj11 connectors
